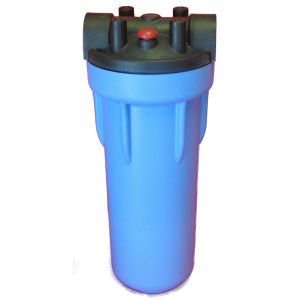

Pentek 158598 3G Slim Line 10 inch MB Black/Blue Housing with PR

Description

The Pentek 158598 3G Slim Line 10 inch MB Black/Blue  Housing with Pressure Release features:

• 1/4″ inlet outlet
• Dimensions: 12 1/8″ x 4 3/8″
• Uses a Buna-N Oring
• With Pressure Release
• With mounting bosses for MC-1A bracket
• Clear Bowl with a White Polypropylene Reinforced Head

This product must be ordered in quantities of 12.

Slim Line® filter housings are available in either reinforced polypropylene or clear Styrene-Acrylonitrile (SAN) in 5″, 10″ and 20″ lengths. The black or blue reinforced polypropylene housing caps are available with 1/4″, 3/8″ or 1/2″ NPT connections. Four bosses are molded into every cap for mounting purposes.

They are equipped with a black, reinforced polypropylene cap and offer an optional pressure-relief button on the inlet side to relieve pressure inside the housing when changing filter cartridges.

Slim Line® filter housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns.

For more details about this product, call FilterPure at 800-947-7873.

Download the Pentek 158598 Slim Line Specification Sheet here.
